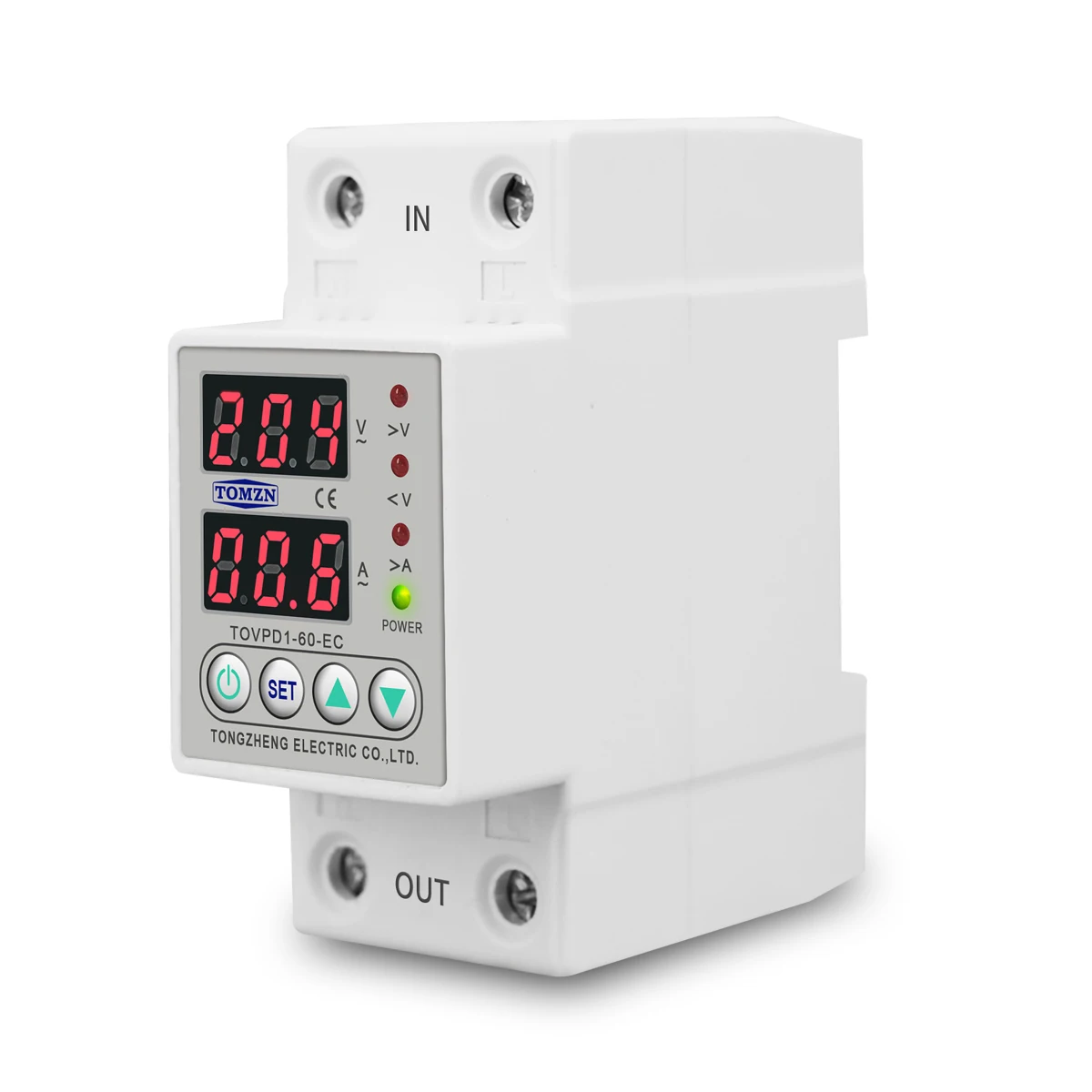

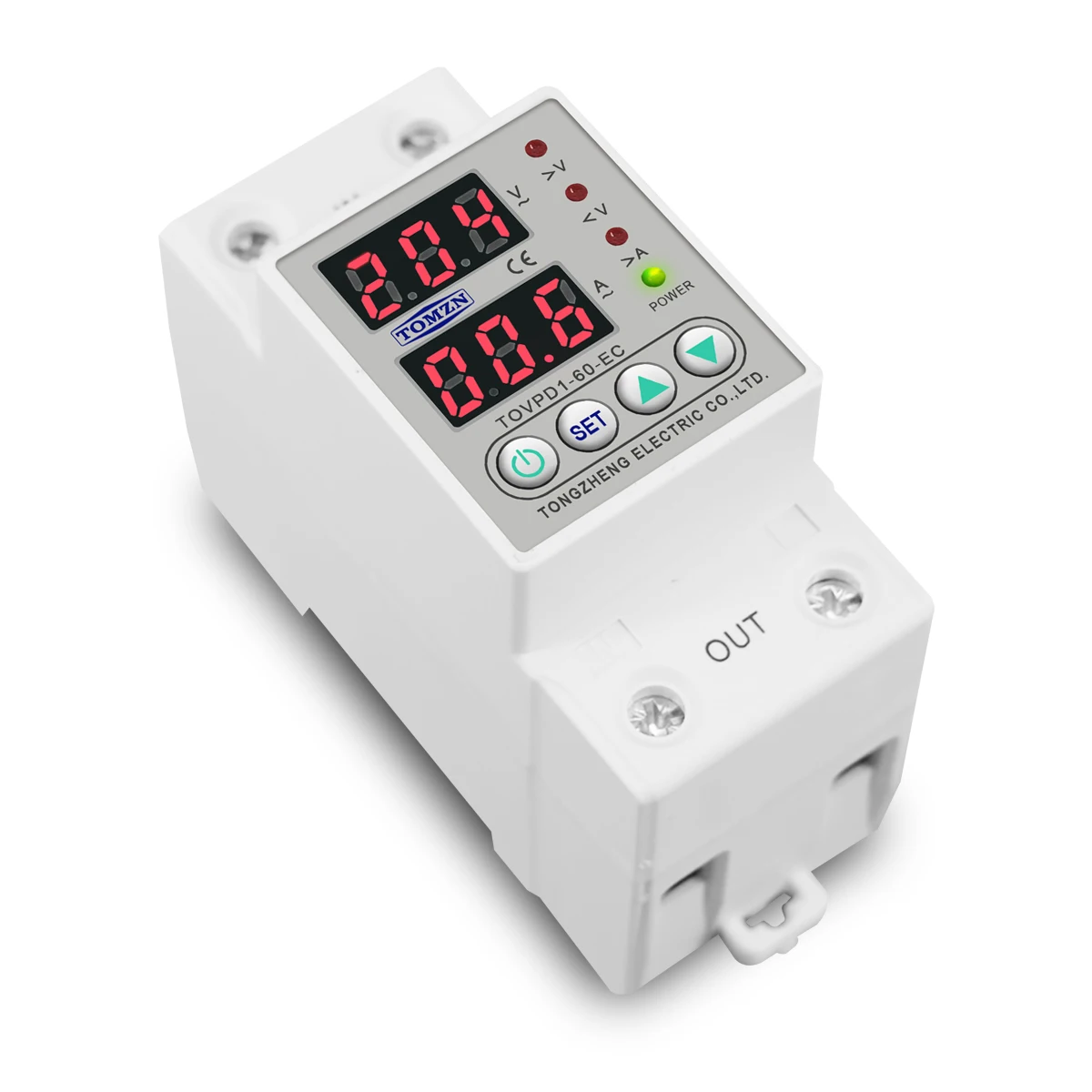

Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 40A 63A 80A 220V 230V

Din Rail

Name: Din Rail - Buy Today 80% OFF - MOLOOCO
SKU: 322445
Availability: InStock
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Price range: $20.49 through $46.53

Rated Current

Poles Number

Clear

Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 40A 63A 80A 220V 230V

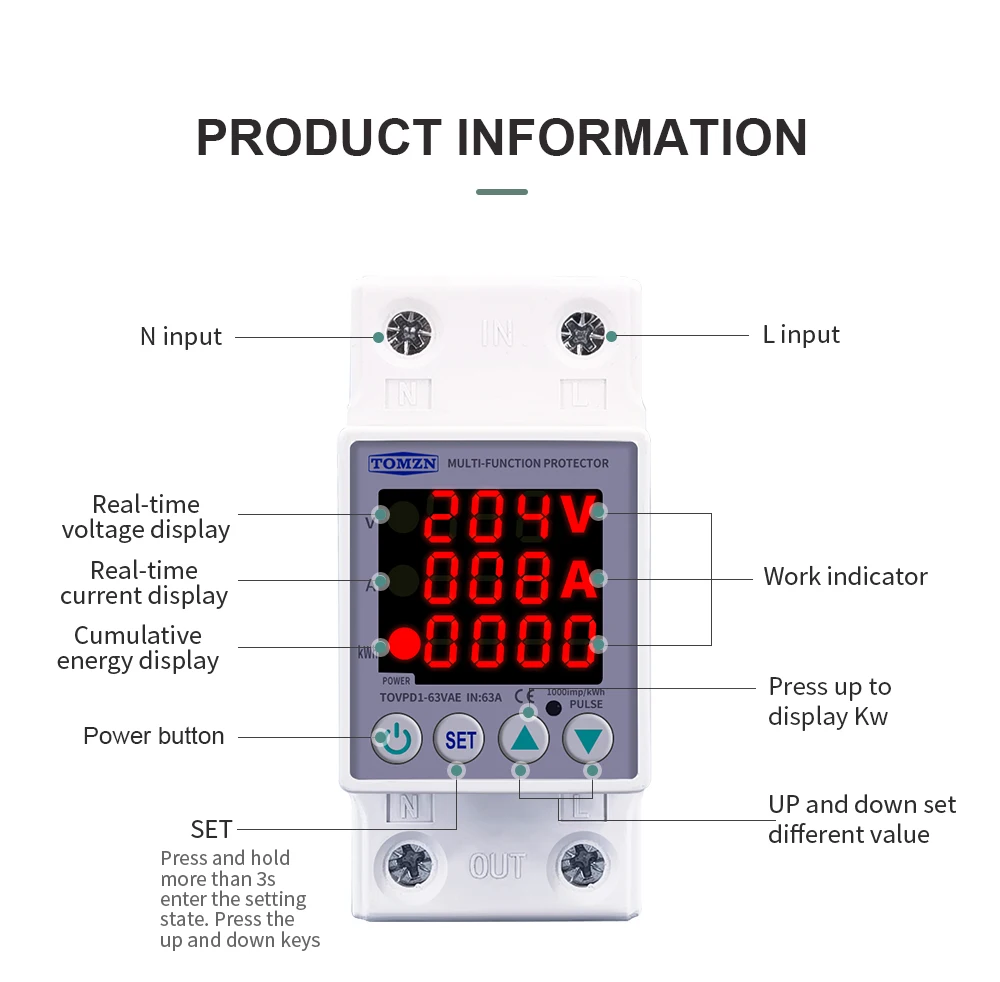

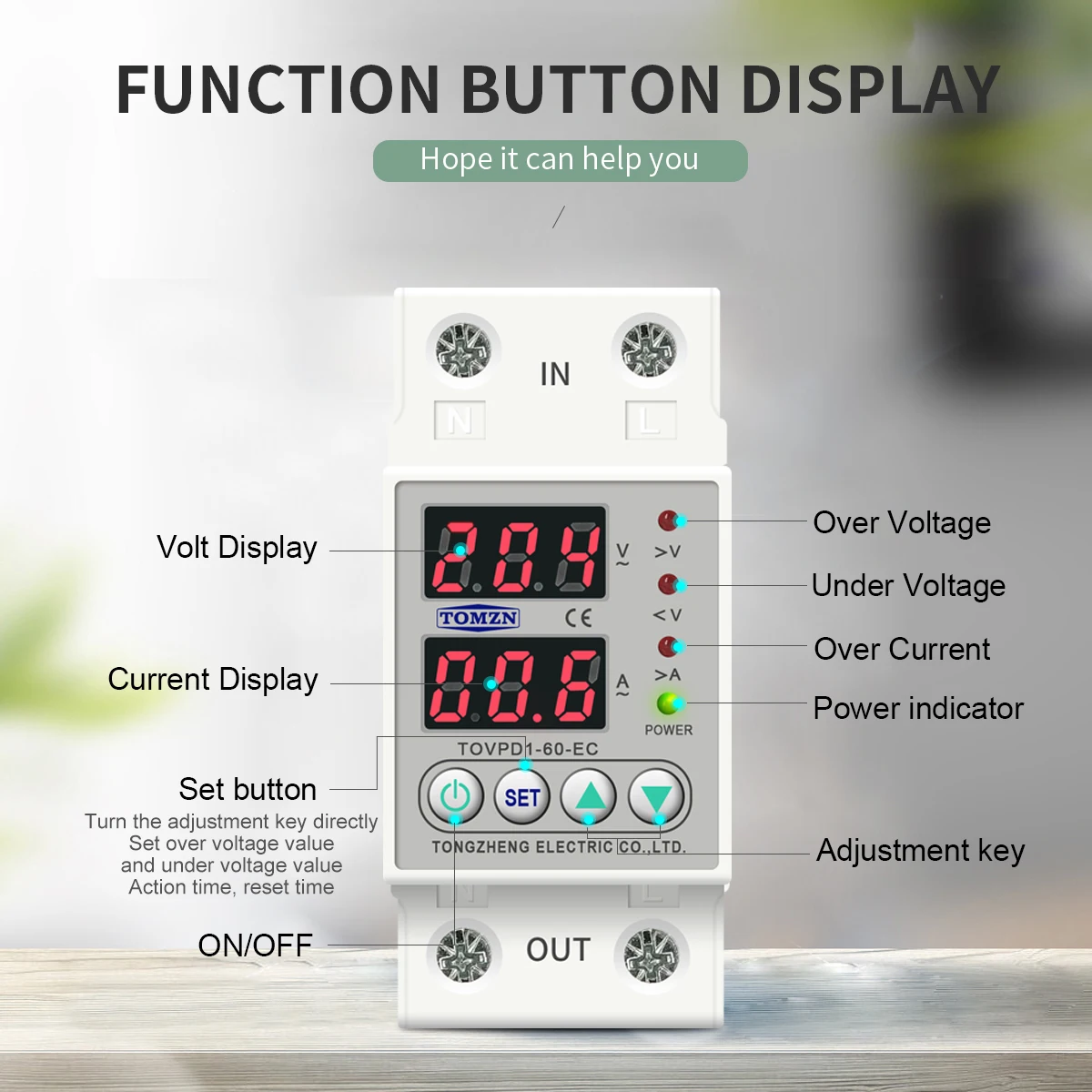

Functions:

1.Over-voltage protection

2.Under-voltage protection

3.Over-current protection

4.Automatic recovery

5.Voltage display(voltage measurement)

6.Current display (current measurement)

7. Voltage calibration: Voltage +-10% adjustable. A13

8. Restore factory settings: press the down button for more than 12s

9.Fault inquiry: Press the UP button from more than 12S

Product Parameters:

1.Model number:TOVPD1-60-EC

2.Power supply:230VAC 50/60Hz

3.Max.Loading power:1~40A Adjustable(default:40A)

1~63A Adjustable(default:63A)

4.Over-voltage protection value range:230V~300~OFF(default:270V)

Over-voltage recovery voltage range:225V–295V(default:250V)

Over-voltage protection action time:0.1s~30s(default value:0.5s)

Over-voltage recovery delay time:1s~500s(default:30s)

5.Under-voltage protection value range:140V–210V –OFF(default:170V)

Under-voltage recovery voltage range:145V–215V (default:190V)

Under-voltage protection action time:0.1s~30s(default:0.5s)

Under-voltage recovery delay time:1s~500s(default:30s)

6.Over-current adjustment range:1-40A (default:20A)
1-63A (default:40A)

Over-current action range:0.1~30 second (default:0.5s)

Over-currentrecovery delay time:1s~500s(default:30s)

7.Power-on delay time:1s~500s(default:10s)

9.Power consumption : <2W

10.Electric machinery life : 100,000 times

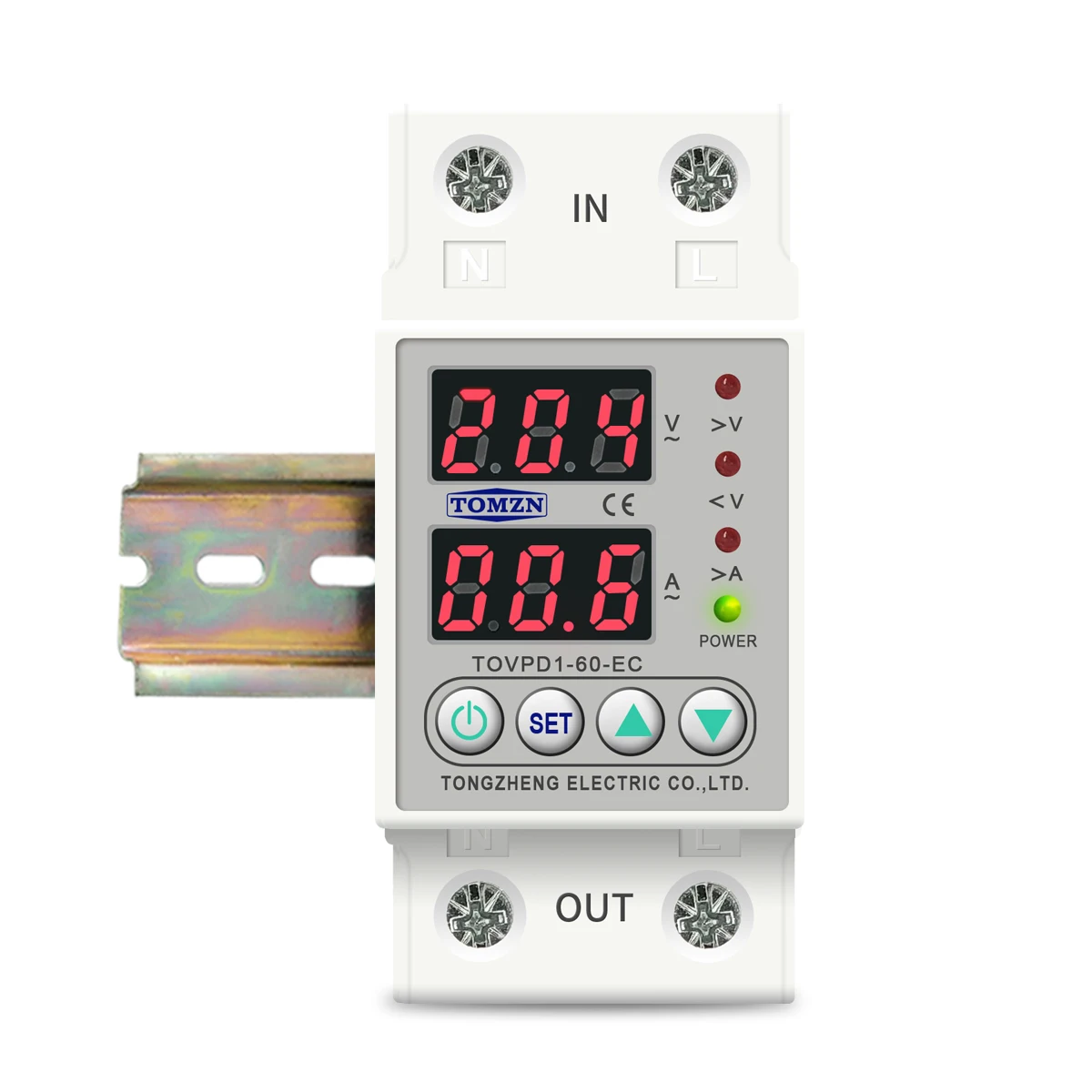

11.Installation:35mm DIN rail

110V Version

2.Power supply:110VAC 50/60Hz

3.Max.Loading power:1~63A Adjustable(default:63A)

4.Over-voltage protection value range:80V~300~OFF(default:145V)

Over-voltage recovery voltage range:75V–295V(default:140V)

Over-voltage protection action time:0.1s~30s(default value:0.5s)

Over-voltage r ecovery delay time:1s~500s(default:30s)

5.Under-voltage protection value range:80V–300V –OFF(default:90V)

Under-voltage recovery voltage range:85V–305V (default:95V)

Under-voltage protection action time:0.1s~30s(default:0.5s)

Under-voltage r ecovery delay time:1s~500s(default:30s)

6.Over-current adjustment range:1-63A (default:40A)

Over-current action range:0.1~30 second (default:0.5s)

Over-current r ecovery delay time:1s~500s(default:30s)

7.Power-on delay time:1s~500s(default:10s)

8.Power consumption : <2W

9.Electric machinery life : 100,000 times

10.Installation:35mm DIN rail

A13 Voltage adjustble +-%9.

A14 Current limit times: 1-20 times (default off)

Restore factory settings: Press the down button for more than 12s

Fault inquiry: Press the UP button for more than 12S
